DbLoader Class Reference

The controller of CIF to DB data conversion process. More...

#include <CifSchemaMap.h>

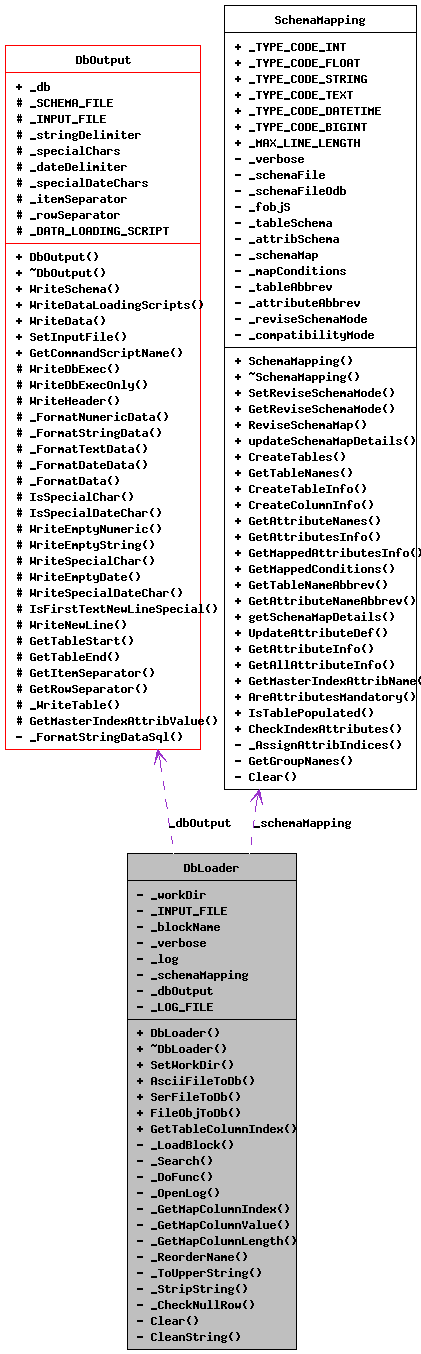

Collaboration diagram for DbLoader:

[legend]List of all members.

Public Types
enum	eConvOpt { eDATA_ONLY = 0, eDATA_WITH_SCRIPTS, eSCRIPTS_ONLY }
Public Member Functions
	DbLoader (SchemaMapping &schemaMapping, DbOutput &dbOutput, bool verbose=false, const string &workDir=String::Empty)
virtual	~DbLoader ()
void	SetWorkDir (const string &workDir)
void	AsciiFileToDb (const string &asciiFile, const eConvOpt convOpt)
void	SerFileToDb (const string &serFile, const eConvOpt convOpt)
void	FileObjToDb (CifFile &cifFile, const eConvOpt convOpt)
Static Public Member Functions
static unsigned int	GetTableColumnIndex (const ISTable &isTable, const string &colName)
Private Member Functions
void	_LoadBlock (Block &rBlock, Block &wBlock)
bool	_Search (vector< vector< string > > &dMap, const unsigned int iAttr, ISTable *isTableP, const string &blockName, const vector< string > &cNameMap, const string &sItem, const string &sCnd, const string &sFnct)
void	_DoFunc (vector< string > &s, const vector< string > &r, const string &sFnct)
void	_OpenLog (const string &logName)
int	_GetMapColumnIndex (const vector< string > &cNameMap, const string &vOf)
void	_GetMapColumnValue (string &p, vector< vector< string > > &dMap, int iCol, int irow)
int	_GetMapColumnLength (vector< vector< string > > &dMap, int iCol)
void	_ReorderName (string &res, char *string, int mode)
void	_ToUpperString (string &aString)
void	_StripString (string &aString, int mode)
int	_CheckNullRow (const vector< string > &row, const vector< ATTRIBINFO > &aI)
void	Clear ()
Static Private Member Functions
static void	CleanString (string &aString)
Private Attributes
string	_workDir
string	_INPUT_FILE
string	_blockName
bool	_verbose
ofstream	_log
SchemaMapping &	_schemaMapping
DbOutput &	_dbOutput
Static Private Attributes
static const string	_LOG_FILE

---

Detailed Description

The controller of CIF to DB data conversion process.

This class controls the conversion process of CIF data to DB loadable data. It provides methods for its construction/destruction, conversion of ASCII CIF files, conversion of serialized (binary) CIF files, conversion of in-memory CIF file objects, setting the working directory. Data conversion methods can be instructed to generate: only the data loading files, only the data loading shell scripts or both the data and scripts. DB server data loading is accomplished by executing the generated loading shell scripts, which utilize the data loading files, obtained during the conversion process.

---

Member Enumeration Documentation

enum DbLoader::eConvOpt

Enumerator:

eDATA_ONLY
eDATA_WITH_SCRIPTS
eSCRIPTS_ONLY

---

Constructor & Destructor Documentation

DbLoader::DbLoader	(	SchemaMapping &	schemaMapping,
		DbOutput &	dbOutput,
		bool	verbose = false,
		const string &	workDir = String::Empty
	)

Constructs a CIF to DB controller object.

Parameters:

[in]	schemaMapping	- reference to the schema mapping object
[in]	dbOutput	- reference to the database output object
[in]	verbose	- optional parameter that indicates whether logging should be turned on (if true) or off (if false). If verbose is not specified, logging is turned off.
[in]	workDir	- optional parameter that indicates the working directory in which the files will be placed. If workDir is not specified, current process working directory is used.

Returns:

Not applicable

Precondition:

None

Postcondition:

None

Exceptions:

None

DbLoader::~DbLoader

(

)

[virtual]

Destructs a CIF to DB controller object.

Parameters:

Not applicable

Returns:

Not applicable

Precondition:

None

Postcondition:

None

Exceptions:

None

---

Member Function Documentation

void DbLoader::SetWorkDir

(

const string &

workDir

)

Sets the working directory in which the generated files will be placed.

Parameters:

[in]

workDir

- indicates the working directory in which the files will be placed.

Returns:

None

Precondition:

None

Postcondition:

None

Exceptions:

None

void DbLoader::AsciiFileToDb	(	const string &	asciiFile,
		const eConvOpt	convOpt
	)

Converts an ASCII CIF file to DB loadable data with/without generating loading scripts. The specified file is first parsed and then converted.

Parameters:

[in]	asciiFile	- indicates the name of the ASCII CIF file, which is to be converted.
[in]	convOpt	- indicates data conversion options: generate data only, generate data with loading scripts, generate loading scripts only.

Returns:

None

Precondition:

None

Postcondition:

None

Exceptions:

None

void DbLoader::SerFileToDb	(	const string &	serFile,
		const eConvOpt	convOpt
	)

Converts a serialized (binary) CIF file to DB loadable data with/without generating loading scripts. The specified file is de-serialized (without the need to parse it) and converted.

Parameters:

[in]	serFile	- indicates the name of the serialized (binary) CIF file, which is to be converted.
[in]	convOpt	- indicates data conversion options: generate data only, generate data with loading scripts, generate loading scripts only.

Returns:

None

Precondition:

None

Postcondition:

None

Exceptions:

None

void DbLoader::FileObjToDb	(	CifFile &	cifFile,
		const eConvOpt	convOpt
	)

Converts an in-memory CIF file object to DB loadable data with/without generating loading scripts.

Parameters:

[in]	cifFile	- a reference to the in-memory CIF file object, which is to be converted.
[in]	convOpt	- indicates data conversion options: generate data only, generate data with loading scripts, generate loading scripts only.

Returns:

None

Precondition:

None

Postcondition:

None

Exceptions:

None

unsigned int DbLoader::GetTableColumnIndex	(	const ISTable &	isTable,
		const string &	colName
	)			[static]

Utility method, not part of users public API.

void DbLoader::_LoadBlock	(	Block &	rBlock,
		Block &	wBlock
	)			[private]

bool DbLoader::_Search	(	vector< vector< string > > &	dMap,
		const unsigned int	iAttr,
		ISTable *	isTableP,
		const string &	blockName,
		const vector< string > &	cNameMap,
		const string &	sItem,
		const string &	sCnd,
		const string &	sFnct
	)			[private]

void DbLoader::_DoFunc	(	vector< string > &	s,
		const vector< string > &	r,
		const string &	sFnct
	)			[private]

void DbLoader::_OpenLog

(

const string &

logName

)

[private]

int DbLoader::_GetMapColumnIndex	(	const vector< string > &	cNameMap,
		const string &	vOf
	)			[private]

void DbLoader::_GetMapColumnValue	(	string &	p,
		vector< vector< string > > &	dMap,
		int	iCol,
		int	irow
	)			[private]

int DbLoader::_GetMapColumnLength	(	vector< vector< string > > &	dMap,
		int	iCol
	)			[private]

void DbLoader::_ReorderName	(	string &	res,
		char *	string,
		int	mode
	)			[private]

void DbLoader::_ToUpperString

(

string &

aString

)

[private]

void DbLoader::_StripString	(	string &	aString,
		int	mode
	)			[private]

int DbLoader::_CheckNullRow	(	const vector< string > &	row,
		const vector< ATTRIBINFO > &	aI
	)			[private]

void DbLoader::CleanString

(

string &

aString

)

[static, private]

void DbLoader::Clear

(

)

[private]

---

Member Data Documentation

const string DbLoader::_LOG_FILE [static, private]

string DbLoader::_workDir [private]

string DbLoader::_INPUT_FILE [private]

string DbLoader::_blockName [private]

bool DbLoader::_verbose [private]

ofstream DbLoader::_log [private]

SchemaMapping& DbLoader::_schemaMapping [private]

DbOutput& DbLoader::_dbOutput [private]

---

The documentation for this class was generated from the following files:

• CifSchemaMap.h
• CifSchemaMap.C

---
